Energy fluxes deep dive
This document presents a detailed breakdown of SOLPS-ITER energy flux variables, which followed from a simple question:
"What is the total SOLPS target heat load and what are its components?"
The document was written by Aleš Podolník. Thank you Aleš!
Some of the figures used here were produced using Aleš's example Python notebooks stored in the IPP Prague GitLab repository SOLPS-tutorials open_in_new: Divertor heat flux calculation open_in_new and Regions in the SOLPS computational domain open_in_new.
A note for better comprehension, variable names taken from SOLPS manual are written in italics. Variable names or code lines taken from the code are written in code blocks. Line numbers can slightly differ between builds, however, if you look around, you'll probably find the correct expression somewhere nearby.
Total poloidal energy flux in B2.5
This is the final expression for fhtx in b2plot.f, which is basically only extracting poloidal component (see the last index on the right-hand side) of two arrays, fht (total energy flux) and fhi_ext (ion energy flux from external sources):
b2plot.f:3573: fhtx(:,:)=fht(:,:,0)+fhi_ext(:,:,0)
What does 'external' mean? Maybe this part of SOLPS manual (p. 470, B2plot commands) can be of use:
A note about total energy fluxes. These are provided in two slightly different forms, denoted
fet[xy]andfht[xy]. Both formulations contain thefhe,fhi,fhm, andfhpterms. If the code was solving internal energy equations (i.e.b2news_BoRiSset to 0.0 [default]), we add viscous correction terms and an extra factor of particle flux times temperature. For thefhtformulation, we also add the electrostatic energy flux termfhj. This term is not included infet, but, instead,fetwill include any contributions from species provided by an additional external code (for example, IMPGYRO). These external species do not include the ones followed by Eirene, however.
Which, if I assume correctly, in our case means that we do not need to follow the fhi_ext variable, since we only use EIRENE as external quantities provider and thus it is handled in some other manner.
Poloidal total heat flux fhtx
First, we will follow the fht term. It is composed of several parts as defined in b2xpen.f.
The term is computed step-wise, first the total quantities are summed, then species contributions are added up. The process can be found in b2xpen.f on two lines:
b2xpen.f:98: fht = fhe + fhi + fhj + fnt*(1.0_R8-BoRiS)
! for each species is
b2xpen.f:100: fht = fht + fhp(:,:,:,is)
+ fhm(:,:,:,is)*(1.0_R8-BoRiS)
The line 98 is directly related to the quote from the SOLPS manual - it includes ion and electron thermal energy flux (fhe, fhi), electrostatic energy flux (fhj) and a contribution of viscous corrections (fnt) (in b2xpen.f:100 BoRiS == 0, 1.0_R8 is just a precise Fortran way of writing number one). The next line (100) iterates over species (is) and adds the contribution of potential energy flux (fhp, also ionisation energy flux in other parts of the manual) and kinetic energy flux (fhm, again if BoRiS == 0) to the total flux fht.
Who is BoRiS? As seen in above quote, it is a way to switch internal energy calculation on, which is done by default. There is also an interesting note in the SOLPS manual (p. 278)
’b2news_BoRiS’ ’0.0’ Physics
The poloidal convective heat flux contains a prefactor of (3/2+BoRiS). The default gives us the internal energy equation. The value BoRiS = 1.0 gives us the total energy equation. Only for use to benchmark with codes using the total energy equation. When used, the meaning of
fheandfhichanges from internal energy fluxes to total energy fluxes.
Which means that this switch is always off (i.e. set to 0) and we should not touch it, as we are probably not doing any benchmarking. Thus both contributions of fnt and fhm are accounted for.
Now, we can look for variables from the line 98. I think there is no need to discuss fhe and fhi, these are just heat flux terms (one can see b2tfhe.f and b2tfhi.f for more information on implementation of the equations, just note that fhi contains all atom heat flux and the species are not separated here). First, there is the fhj (electrostatic energy flux) term:
b2xpen.f:54: fhj(ix,iy,0)=-fch(ix,iy,0)
*(po(ix,iy)+po(leftix(ix,iy),leftiy(ix,iy)))/2.0_R8
First, note the last index on the LHS - 0 means poloidal. There is also radial term a few lines further in the code; however, only the direction of the gradient is changed (left turns to bottom). The electrostatic energy flux fhj is thus a product of poloidal current and electric potential (I guess there is some normalization to match the units). There is a transformation from cell centres to cell faces as well (linear interpolation - (po(...)+po(...))/2) - this will be seen also further in the text.
The viscous correction term fnt is calculated step-wise. First, at line 56 at b2xpen.f, the conductive (hopefully) electron heat flux (fne_53*te) is added to the variable.
b2xpen.f:56: fnt(ix,iy,0)=fne_53(ix,iy,0)
*(te(ix,iy)+te(leftix(ix,iy),leftiy(ix,iy)))/2.0_R8
fna_53 * ti) is added.
b2xpen.f:78: fnt(ix,iy,0)=fnt(ix,iy,0)
+0.5_R8*fna_53(ix,iy,0,is)
*(ti(leftix(ix,iy),leftiy(ix,iy))+ti(ix,iy))
0.5*... instead .../2; btw multiplication should be faster than division).
Furthermore, fne_53 and fna_53 in this context is just a parameter of the function which calculates fnt, the subroutine b2xpen, which has the following signature:
subroutine b2xpen (nx, ny, ns, fna, fna_53, fne_53, fch, fhe, fhi, kinrgy,
ua, cvsa, rpt, te, ti, po, BoRiS, fhm, fhp, fhj, fht)
You can see _53 variables in the parentheses. We have to find, where and why the function is called. This is where the confusion starts, there are two types of the call:
call b2xpen (nx, ny, ns, fna, fna, fne, fch, fhe, fhi, kinrgy, ua, cvsa, rpt, te, ti, po, BoRiS, fhm, fhp, fhj, fht)call b2xpen (nx, ny, ns, fna, fna_53, fne_53, fch, fhe, fhi, kinrgy, ua, cvsa, rpt, te, ti, po, BoRiS, fhm, fhp, fhj, fht)
See the difference? The first call is most prevalent (however, in b2plot.f, it is used only for backwards compatibility if fluxes are not present in the output), however the second one is in the b2mndt.f, which is the time step of the solver.
_53variables are in use in this call only in main iteration step, but also only if the number of time steps is set to0(ntim).- All other calls use
fnX_53 === fnXincluding the equation solver itself.
This probably means two things (thanks Katka).
- During the calculation itself, the call is used without
_53suffix and the code is working with internal energy only (i.e. \(3/2 \, kT_\mathrm{e}\)). - During post-processing (
ntim = 0), total energy (i.e. \((3/2 + 1) kT_\mathrm{e}\)) is used for subsequent calculations.
The difference between (e.g.) fna_53 and fna is discussed in the section On origin of five thirds.
Going back to untracked variables, only fhp and fhm remain (from b2xpen.f:100). As for the confusion in the nomenclature - fhp is called potential energy as well as ionisation energy flux - which, I guess, does not help in understanding its meaning. Regardless the name, the calculation is again performed in b2xpen.f:
b2xpen.f:76: fhp(ix,iy,0,is)=0.5_R8*fna(ix,iy,0,is)
*(rpt(leftix(ix,iy),leftiy(ix,iy),is)
+rpt(ix,iy,is)
)*ev
fna(...,is) and cumulative ionisation potential rpt to the charged state which is represents (is = species index). Then there is some face/centre correction (0.5) and unit conversion.
Similarly, the fhm is derived a few lines apart.
b2xpen.f:76: fhm(ix,iy,0,is)=0.5_R8*fna(ix,iy,0,is)
*(kinrgy(leftix(ix,iy),leftiy(ix,iy),is)
+kinrgy(ix,iy,is)
)
-0.5_R8*cvsa(ix,iy,0,is)
*(ua(ix,iy,is)
+ua(leftix(ix,iy),leftiy(ix,iy),is)
)
*(ua(ix,iy,is)
-ua(leftix(ix,iy),leftiy(ix,iy),is)
)
kinrgy is total kinetic energy of species is. Furthermore, cvsa is the viscous conductance of the species between cells and ua is parallel velocity.
And that's all. No radiation anywhere.
External ion heat flux
Regarding fhi_ext, I think we don't have to be bothered with it. These are the definitions of the variable on several places in the code.
b2mod_external.f:326: fhi_ext(ix,iy,0) = fhi_ext(ix,iy,0)
+ 1.5_R8*fa_ext(ix,iy,0,is)
*(ta_ext(ix,iy,is)
+ta_ext(leftix(ix,iy),
leftiy(ix,iy),
is)
)/2.0_R8
b2mod_impgyro.f:232: fhi_ext(ix,iy,0) = fhi_ext(ix,iy,0)
+ 1.5_R8*fa_ext(ix,iy,0,is)
*(ta_ext(ix,iy,is)
+ta_ext(leftix(ix,iy),
leftiy(ix,iy),
is)
)/2.0_R8
b2stbm.f:346: fhi_ext(ix,iy,0) = fhi_ext(ix,iy,0)
+ 1.5_R8*fa_ext(ix,iy,0,is)
*(ta_ext(ix,iy,is)
+ta_ext(leftix(ix,iy),
leftiy(ix,iy),
is)
)/2.0_R8
All of these are sums for all external species is with fluxes (fa_ext) and temperatures (ta_ext) and these are loaded from some external data or calculated using some other software. I guess it is probably to include more physics that SOLPS does not account for.
On the origin of five thirds
In this section, we will go through the calculation of fna_53 and fne_53 as it is being performed using b2mndt subroutine. This can be skipped, if it is too tedious read.
In b2mndt.f, let's inspect the block from line 515 (non-related parts are omitted):
! code continues above with if clause
b2mndt.f:515: else if (ntim.eq.0) then ! compute derived quantities
b2mndt.f:526: do is=0,ns-1
! compute particle fluxes
b2mndt.f:531: call b2tfnb (..., fna_53(-1,-1,0,is), ...)
b2mndt.f:553: end do
! compute other fluxes
b2mndt.f:558: call b2xpfe (..., fna_53, ..., fne_53)
b2mndt.f:560: call b2xpen (..., fna_53, fne_53, ..., fhm, fhp, fhj, fht)
b2mndt.f:604: endif
Line by line - first, fna_53 is calculated using the function b2tfnb for each species, then, electron term fne_53 is calculated using a call to b2xpfe. Let's review these two calls:
The subroutine b2tfnb is located (unsurprisingly) in b2tfnb.f. Note that the function considers only single atomic species, thus different naming is applied (fnb_53 instead of fna_53 etc.). Leaving out the places, where default values are set or normalization is applied, we can see that the fnb_53 variable is set on several places:
b2tfnb.f:1129: ! (same as 1228)
b2tfnb.f:1228: fnb_53(ix,iy,0) = flo_53
*(nb(leftix(ix,iy),
leftiy(ix,iy)
)
+nb(ix,iy)
)/2.0_R8
b2tfnb.f:1572: fnb_53(ix,iy,1) = flo_53
*(nb(bottomix(ix,iy),
bottomiy(ix,iy)
)
+nb(ix,iy)
)/2.0_R8
One can see that the poloidal and toroidal components are set (multiple occurrences are just due to different SOLPS numeric schemes (usually, we use the one from 1129, since the latter is in the SOLPS 4 compatibility block), however the content is the same). Nevertheless, density of single species (nb) and flow velocity (flo_53) are used to calculate the flux. Let's leave out density, since that is an independent quantity (and there is no hint of _53 in the name) and look for the convective flow.
Variable flo_53 is defined again at several places depending on several conditions:
b2tfnb.f:928: if(drift_style.eq.0) then
b2tfnb.f:949: flo_53 = pbs(ix,iy,0)*wrk0(ix,iy)
+term(ix,iy)
+(vbecrb(ix,iy,0)
+vbecrb(leftix(ix,iy),leftiy(ix,iy),0)
)/2.0_R8*0.5_R8
*(vol(ix,iy)/hx(ix,iy)
+vol(leftix(ix,iy),leftiy(ix,iy))
/hx(leftix(ix,iy),leftiy(ix,iy))
)
b2tfnb.f:963: elseif (drift_style .eq. 1 .or. redef_gmtry .eq. 0) then
b2tfnb.f:982: flo_53 = pbs(ix,iy,0)*wrk0(ix,iy)
+term(ix,iy)
+vbecrb(ix,iy,0)
*(vol(ix,iy)+vol(leftix(ix,iy),leftiy(ix,iy)))
/(hx(ix,iy)+hx(leftix(ix,iy),leftiy(ix,iy)))
b2tfnb.f:963: elseif (drift_style .eq. 2 .and. redef_gmtry .eq. 1) then
b2tfnb.f:1005: flo_53 = pbs(ix,iy,0)*wrk0(ix,iy)
+term(ix,iy)
+vbecrb(ix,iy,0)*gs(ix,iy,0)*qc(ix,iy)
This shows different handling of flo_53 depending on drift calculation style (cell faces, centres, both...) and some other geometry settings. As the code goes, flo_53 is just a local kind-of temporary variable. Its value is then passed to calculations of fnb_53 on line 1129 or 1228 (depending on other conditions) to calculate the poloidal component.
For toroidal component (line 1572), the calculation is slightly different, and it is performed here:
b2tfnb.f:1447: if(drift_style.eq.0)then
b2tfnb.f:1477: flo_53 = 0.5_R8*(vbecrb(ix,iy,1)*vol(ix,iy)/hy1(ix,iy)
+vbecrb(bottomix(ix,iy),bottomiy(ix,iy),1)
*vol(bottomix(ix,iy),bottomiy(ix,iy))
/hy1(bottomix(ix,iy),bottomiy(ix,iy))
)
b2tfnb.f:1481: elseif (drift_style.eq.1 .or. redef_gmtry.eq.0) then
b2tfnb.f:1504: flo_53 = vbecrb(ix,iy,1)
*(vol(ix,iy)+vol(bottomix(ix,iy),bottomiy(ix,iy)))
/(hy1(ix,iy)+hy1(bottomix(ix,iy),bottomiy(ix,iy)))
b2tfnb.f:1507: elseif (drift_style.eq.2 .and. redef_gmtry.eq.1) then
b2tfnb.f:1521: flo_53 = vbecrb(ix,iy,1)*gs(ix,iy,1)
And again, different expressions for different drifts are included. I will not discuss these variants, just summarize the variables used.
pbs- cell area projection to magnetic field components ((bx/bb)*sxand(by/bb)*sy, i.e. parallel contact area with the left and bottom cell.wrk0- workspace variable containing something calledleftface(probably area between adjacent cells?), calculated inintfaceh.fby the subroutine of the same name.term- probably damping term (Rhie and Chow) for instability avoidance (non-physical)vbecrb- \(\mathbf{E} \times \mathbf{B}\) drift velocity (seevaecrbin SOLPS manual)vol- volume of the cellhx,hy- cell diameters in poloidal and toroidal directiongs- area between a cell and its left neighbourqc- angular correction (see SOLPS manual for precise definition)
We could go further down, however, let's take look on the difference between calculation of fna, fna_32 and fna_53, since the routine b2tfnb calculates both quantities. These lines are used when calculating poloidal component in SOLPS 5 (and above, I will not discuss SOLPS 4).
b2tfnb.f:1035: fnb(ix,iy,0) =
flo*(nb(leftix(ix,iy),leftiy(ix,iy))+nb(ix,iy))/2.0_R8
-con(ix,iy)*(nb(ix,iy)-nb(leftix(ix,iy),leftiy(ix,iy)))
-cdpb(ix,iy,0)*(pb(ix,iy)-pb(leftix(ix,iy),leftiy(ix,iy)))
b2tfnb.f:1113: fnb_32(ix,iy,0) =
flo*(nb(leftix(ix,iy),leftiy(ix,iy))+nb(ix,iy))/2.0_R8
-abs(flo/2.0_R8)*(nb(ix,iy)-nb(leftix(ix,iy),leftiy(ix,iy)))
b2tfnb.f:1129: fnb_53(ix,iy,0) =
flo_53*(nb(leftix(ix,iy),leftiy(ix,iy))+nb(ix,iy))/2.0_R8
Variables con ad cdpb store particle diffusivity with respect to gradients of \(n\) and \(p\). Now, we can see that the situation is not clear at all... The flow velocity flo is calculated again with respect to different drift style. Comparing the simplest expression for drift_style == 2 (probably the one we are using, the others are older), we can see:
b2tfnb.f:1005: flo_53 = pbs(ix,iy,0)*wrk0(ix,iy)
+term(ix,iy)
+vbecrb(ix,iy,0)*gs(ix,iy,0)*qc(ix,iy)
b2tfnb.f:1005: flo = cvlb(ix,iy,0)
+pbs(ix,iy,0)*wrk0(ix,iy)
+term(ix,iy)
+ubdia(ix,iy,0)*gs(ix,iy,0)*qc(ix,iy)
+scur
It is worth mentioning that we might be using completely different variable set, marked with _nd or nodrift in case of omitting drifts, but I think that the main variables are just the same and the drift velocity arrays are zero.
However, we can see that the core of both flow velocities is the same. Also, comparing the poloidal and toroidal component, we can see that the toroidal component is non-zero only if drift velocity is non-zero. What are the variables here?
pbs,wrk0,term,vbecrb,gs,qc- see abovecvlb- anomalous velocity (seecvlain SOLPS manual)ubdia- drift velocities in diamagnetic and radial directions (seeuadiain SOLPS manual)scur- current contribution.
I would like to continue further, but I guess it is as complicated as SOLPS gets - e.g. why flo_53 uses vbecrb while flo uses ubdia. One should do the arithmetic and find out whether the resulting quantities really differ in multiples of \(kT_\mathrm{e}\), or not. I just leave it here.
Divertor target loads from wlld
However, the data from ld_tg_*.dat are calculated completely in a different manner, since they also include neutral loads (either fluid or from Eirene). There is a lot of quantities in the file, copying from the file itself reads (column label, meaning, variable):
- x - coordinate along target [m]. <0 in PFR, variable
xtrg - ne - electron density [1/m\(^3\)], variable
netrg - Te - electron temperature [eV], variable
tetrg - Ti - ion temperature [eV], variable
titrg - Wtot - total power flux [W/m\(^2\)], variable
wtttrg - Wpart - power flux with particles [W/m\(^2\)], variable
wpttrg - Wrad - power flux with radiation [W/m\(^2\)], variable
wrdtrg - Wpls - power flux with charged particles [W/m\(^2\)], variable
wpltrg - Wneut - power flux with neutral particles [W/m\(^2\)], variable
wnutrg - Wheat - power flux due to particles impinging on wall [W/m\(^2\)], variable
whtnu+whtpl - Wpot - power flux due to recombination [W/m\(^2\)], variable
wptnu+wptpl - Whtpl - power flux due to plasma particles impinging on wall [W/m\(^2\)], variable
whtpl - Wptpl - power flux due to plasma recombination [W/m\(^2\)], variable
wptpl - xMP - radial coordinate in midplane for outer/inner target(s) [m], variable
xmp_hlp - Rclfc - radial coordinate on target [m], variable
rctrg - Zclfc - vertical coordinate on target [m], variable
zctrg - Wpar_xpt - parallel power flux around x-point [W/m\(^2\)], variable
wp_xpt - WWpar - would-be parallel power flux without dissipation in divertor [W/m\(^2\)], variable
wid_par - WWtrg - would-be target power flux without dissipation in divertor [W/m\(^2\)], variable
wid_trg - Lcnnt - connection length from midplane to target [m], variable
lcnnt - Lcnnx - connection length from x-point to target [m], variable
lcnnx
And optional parameters
- rad_XX - radiation power flux from species XX [W/m\(^2\)], variable wrdtrg
- rad_cr - radiation power flux from core [W/m\(^2\)], variable wrdtrg
The variable wrdtrg is used in both as a source of data, not directly.
In following paragraphs, we will discuss the variables. There is a lot of indexing variables, for summary:
iy- toroidal index (usually a loop in this index is carried out along the target)is- species index (again a loop, usually for summing up all species contributions)k,l,kkand their combination - poloidal indices or offsets (l) of adjacent cells for proper calculation of fluxes (one should draw his own diagram of computing domain to understand that)BoRiS- a switch mentioned above, probably always equal to 0.
There are also some normalization variables:
s- face area of the cellu- usually the direction of the flux (-1)
Column description
Total power flux
Data in the column Wtot are calculated here as a variable wtttrg:
b2ptrgl.f:595: wtttrg(iy,itrg(j))=wpttrg(iy,itrg(j))+wrdtrg(iy,itrg(j),0)
Total power flux is the sum of particle power flux (wpttrg) and radiation power flux (wrdtrg). See further paragraphs for their definitions.
Power flux with particles
Data in the column Wpart are calculated here as a variable wpttrg:
b2ptrgl.f:594: wpttrg(iy,itrg(j))=wnutrg(iy,itrg(j))+wpltrg(iy,itrg(j))
Particle power flux is the sum of neutral (wnutrg) and charged particle loads (wpltrg).
Power flux with radiation
Data in the column Wrad are calculated here as a variable wrdtrg:
b2ptrgl.f:243: call b2ptrdl(wrdtrg)
b2ptrdl.f that integrate all the radiation from the core and the plasma using line radiation (rqrad), Bremssthrahlung (rqbrm) and power losses from atoms (eneutrad), molecules (emolrad), test ions (eionrad) projected on the encompassing shadowing structure. I did not want to dig into this. However, this radiation comes from volume only!
Power flux with charged particles
Data in the column Wpls are calculated in two steps as a variable wpltrg:
b2ptrgl.f:438: wpltrg(iy,itrg(j))=wptpl(iy,itrg(j))+whtpl(iy,itrg(j))
wptpl and impinging particles power load whtpl (only charged particles) - both will be described further. Additionally, if Eirene is on (ft44 switch), the calculation follows with
b2ptrgl.f:471: wpltrg(iy,itrg(j))=wpltrg(iy,itrg(j))-wnutpr(iy,itrg(j))
wnutpr) is subtracted. This is obtained from Eirene variable ewldrp_res=ERFPAT+ERFPML (kinetic energy of reflected atoms+molecules originated from ions) meaning that this is the kinetic energy that particles carry away from the divertor. Furthermore, it might be useful to know that wnutpr is probably zero, if Eirene is not used.
On Eirene data
Energy of kinetic and sputtered neutrals (wnutpr) is obtained directly from Eirene data - there are some data fields that determine from which part of the respective array (ewldrp_res) the energy data is taken, the result is represented by the index IAS in the following line.
b2ptrgl.f:468: wnutpr(iy,itrg(j))=ewldrp_res(iy+IAS)
Eirene data will be discussed separately.
Power flux with neutral particles
Data in the column Wneut are calculated here as a variable wnutrg as a sum of all internal (B2.5) and external particles (similar as fhi_ext):
b2ptrgl.f:411: wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
+(1.0_R8-BoRiS)
*(fhm(k+1-l,iy,0,is)
+fna(k+1-l,iy,0,is)*ti(kk,iy)
)
b2ptrgl.f:422: wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
+fa_ext(k+1-l,iy,0,is)
*(1.0_R8-BoRiS)
*(0.5_R8*am_ext(is)*mp
*ua_ext(kk,iy,is)**2
+ta_ext(kk,iy,is)
)
is which belong to neutral species are summed up. Now we are getting to actual B2.5 variables, namely fna (species flux) and ti, ion temperature. In the case of external particles, the flux has to be calculated from underlying statistical variables.
If Eirene is not used, then a normalization is performed here:
b2ptrgl.f:439: if(.not.ft44) wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
*u/s(iy,itrg(j))
b2ptrgl.f:454: wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
+(ewlda_res(is,iy+IAS)
-ewldea_res(is,iy+IAS)
)*sarea_res(iy+IAS)
b2ptrgl.f:461: wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
+(ewldm_res(is,iy+IAS)
-ewldem_res(is,iy+IAS)+ewldmr_res(is,iy+IAS)
)*sarea_res(iy+IAS)
b2ptrgl.f:491: wnutrg(iy,itrg(j))=wnutrg(iy,itrg(j))
+s(iy,itrg(j))*dib2(k+l+1,iy+1,is,1)
*sqrt(max(t/mion,0.0_R8))
*0.25_R8*1.0e4_R8
*(2.0_R8*tib2(k+l+1,iy+1,is,1)
+EionH2*ev
)
ewlda_res and ewldm_res are incident energy fluxes of impinging atoms or molecules (as Eirene neutrals are kinetic, there is no division to thermal part and kinetic part), elwdea_res and elwdem_res are the emitted energy of atoms and molecules and finally, elwdmr_res is energy due to recombination. There is also a face-area-wise normalization sarea_res. The last line (491) is only added if there are any test ions in Eirene (hopefully, we do not use them and I guess that the long line is just some ionisation energy calculation).
Why are not fluxes normalized, if Eirene is used?
Power flux due to particles impinging on wall
I am not sure how to interpret 'impinging' otherwise just hitting? So this is a simple kinetic (convective?) energy transfer? Maybe the name of the column Wheat could be of help. However, this is probably the most complicated calculation in this set. It is calculated as a sum of variables whtnu (neutral) and whtpl (charged particles). Charged part will be discussed further at it has its own column (Whtpl), let's discuss the neutral contribution only. It is calculated here:
b2ptrgl.f:585: whtnu(iy,itrg(j))=wnutrg(iy,itrg(j))-wptnu(iy,itrg(j))
wnutrg (see above) and wptnu (neutral recombination) is substracted (I understand it like that we want to distinguish between atomic and mechanical processes). The neutral recombination part is calculated in a bit strange way:
b2ptrgl.f:584: wptnu(iy,itrg(j))=wnutrg(iy,itrg(j))*wldnep(js,0)/wo
wldnep (energy released by recombination into molecules), which is the same quantity as ewldmr_res seen above, I guess it is some strange result of backwards compatibility. The other quantity, the temporary variable wo, is a sum for all surfaces in Eirene js defined at
b2ptrgl.f:559: wo=wo+wldnek(js,0)+wldnep(js,0)
wldnek is heat transferred with neutrals. Basically, we are subtracting the recombination fraction from wnutrg, however, several people were editing the code, so hence the mess.
A short detour of educated guesses...
wldnek = ewlda_res + ewldmr_res - ewldea_res - ewldem_res(heat transferred by neutrals)wldnep = ewldmr_res(energy released by recombination into molecules)
It appears the same, but there might be some photonic processes neglected.
Power flux due to recombination
The column Wpot is a contribution of recombination from plasma wptpl (discussed below) and neutrals wptnu (discussed above).
Power flux due to plasma particles impinging on wall
The column Whtpl (whtpl) and the charged part of the column Wheat is calculated from B2.5 variables at lines 404 and 414 (loop on species is):
b2ptrgl.f:404: whtpl(iy,itrg(j))=fhe(k+1-l,iy,0)
+fhi(k+1-l,iy,0)+fhi_ext(k+1-l,iy,0)
b2ptrgl.f:414: whtpl(iy,itrg(j))=whtpl(iy,itrg(j))
+(1.0_R8-BoRiS)*(fhm(k+1-l,iy,0,is)
+fna(k+1-l,iy,0,is)
*ti(kk,iy)
)
b2ptrgl.f:427: whtpl(iy,itrg(j))=whtpl(iy,itrg(j))
+fa_ext(k+1-l,iy,0,is)
*(1.0_R8-BoRiS)
*(ta_ext(kk,iy,is)
+0.5_R8*am_ext(is)
*mp*ua_ext(kk,iy,is)**2
)
b2ptrgl.f:432: whtpl(iy,itrg(j))=whtpl(iy,itrg(j))
+fne(k+1-l,iy,0)*(1.0_R8-BoRiS)*te(kk,iy)
b2ptrgl.f:437: whtpl(iy,itrg(j))=whtpl(iy,itrg(j))/s(iy,itrg(j))*u
Additionally, if Eirene is on (ft44 switch), the calculation follows with
b2ptrgl.f:470: whtpl(iy,itrg(j))=whtpl(iy,itrg(j))-wnutpr(iy,itrg(j))
wnutpr) multiple times. Note that this happens only after whtpl is used for calculation of wpltrg (Wpls respectively).
This is similar to wnutrg, however, all species from B2.5 are added (in loop in l. 414) - this is slightly confusing, since I am not sure what does it mean for fluid neutrals. Then, the external contribution is added (427). Last line is a normalization to proper units (s - cell area, u - 'direction', l. 437).
Power flux due to plasma recombination
The column Wptpl is the contribution of plasma to recombination (wptpl) flux, it is defined here:
b2ptrgl.f:436: wptpl(iy,itrg(j))=wo/s(iy,itrg(j))*u
s and u are normalization factors (see above), wo is a temporary variable, which is defined in such way that
b2ptrgl.f:408: wo=wo+fhp(k+1-l,iy,0,is)
b2ptrgl.f:418: wo=wo+fa_ext(k+1-l,iy,0,is)*pt_ext(kk,iy,is)*ev
fhp) and external (418, fa_ext is external particle flux and pt_ext is (?) external particle ionization potential, normalized).
Parallel power flux around x-point and would-be fluxes
In this context, the "flux around X-point" probably means the "divertor entrance". Columns Wpar_xpt (wp_xpt), WWpar (wid_par) and WWtrg (wid_trg) are closely tied together and they are defined in following lines of code:
b2ptrgl.f:359: wp_xpt(iy,itrg(j))=wo*u/abs(pbs(k,iy,0))
b2ptrgl.f:360: wid_par(iy,itrg(j))=wp_xpt(iy,itrg(j))*cr(k,iy)/cr(m,iy)
b2ptrgl.f:361: wid_trg(iy,itrg(j))=wo*u/s(iy,itrg(j))
This calculation is rather complicated.
First, the temporary variable wo is created:
b2ptrgl.f:354: wo=fht(k,iy,0)-fhj(k,iy,0)
k is the index of "particle source" - probably somewhere around X-point or divertor entrance, but in fact, the value of k is calculated as the first poloidal index where the total poloidal flux (without contribution of currents) reaches the first local maximum in the direction towards the other connected target (complicated in DN geometries).
One can expand those lines as (_DE suffix indicated values at the divertor entrance)
wp_xpt = (fht_DE - fhj_DE) * u / abs(pbs_DE)
wid_par = (fht_DE - fhj_DE) * u * (cr_DE / cr) / abs(pbs_DE)
wid_trg = (fht_DE - fhj_DE) * u / s
The helper variables in this case are:
pbs- parallel contact area, the quantity one needs to get parallel flux.cr- cell midpoint radiuss- cell face area.u- normalization factor to get positive values
This means that after identifying divertor entrance, the wp_xpt is taken from that location, wid_par is re-scaled using flux expansion (there is already division by s inside the pbs_DE, however, one has to somehow account for a different radial position) from the divertor entrance to the target and wid_trg is calculated assuming that only the continuity equation is fulfilled (just simply taking the flux at the divertor entrance and dividing it by the target cell area).
There is one important remark resulting from the divertor entrance calculation. I
Structure of wall loads file
The file produced by the command echo 100 wlld | b2plot has the following structure.
| Column | Variable |
|---|---|
| x | xtrg(i,itrg(j)) |
| ne | netrg(i,itrg(j)) |
| Te | tetrg(i,itrg(j)) |
| Ti | titrg(i,itrg(j)) |
| Wtot | wtttrg(i,itrg(j)) |
| Wpart | wpttrg(i,itrg(j)) |
| Wrad | wrdtrg(i,itrg(j),0) |
| Wpls | wpltrg(i,itrg(j)) |
| Wneut | wnutrg(i,itrg(j)) |
| Wheat | whtnu(i,itrg(j))+whtpl(i,itrg(j)) |
| Wpot | wptnu(i,itrg(j))+wptpl(i,itrg(j)) |
| Whtpl | whtpl(i,itrg(j)) |
| Wptpl | wptpl(i,itrg(j)) |
| xMP | xmp_hlp(i,k) |
| Rclfc | rctrg(i,itrg(j)) |
| Zclfc | zctrg(i,itrg(j)) |
| Wpar_xpt | wp_xpt(i,itrg(j)) |
| WWpar | wid_par(i,itrg(j)) |
| WWtrg | wid_trg(i,itrg(j)) |
| Lcnnt | lcnnt(i,itrg(j)) |
| Lcnnx | lcnnx(i,itrg(j)) |
Eirene source tallies
Tallies (records) produced by Eirene are important to understand to neutral contribution to wall loads. We will follow all the contributions to wnutrg (Wneut) in the following text. What is maybe not an intuitive thing, the coupling is done always through the relevant species - thus if a summation is indicated, one should bear in mind that it means species-wise.
Before that, it is useful to remind the naming convention of Eirene, since the coupled B2.5 are calculated from underlying tallies.
Each tally represents production rates for a particular reaction (or set of reactions). Naming structure usually follows this pattern [Z][A][BC] with following meaning.
[Z]- type of the tally- Volume averaged tallies tallies
P- particle source rateE- energy source rateM- momentum source rate
- Surface averaged tallies
PRF,ERF- analogous - reflected fluxesPOT,EOT- analogous - incident fluxSPT- sputtered fluxes
- Volume averaged tallies tallies
[A]- type of incident particle- nothing - for incident fluxes (strange, but this it how it works, probably an inversion of incident/emitted particles)
A- atoms (neutrals)M- molecules (neutrals)I- test ionsPH- photonsP- bulk plasma particles (not sure if electrons are accounted for here)
[BC]- type of produced (emitted) particleAT- atoms (neutrals)ML- molecules (neutrals)IO- test ionsPHT- photonsEL- electronsPL- bulk particles
In B2.5, test ions are probably not in use. *RF an *OF are closely coupled, since reflected particles originate from incident ones.
Some time in the future, I would like to write something about coupling.

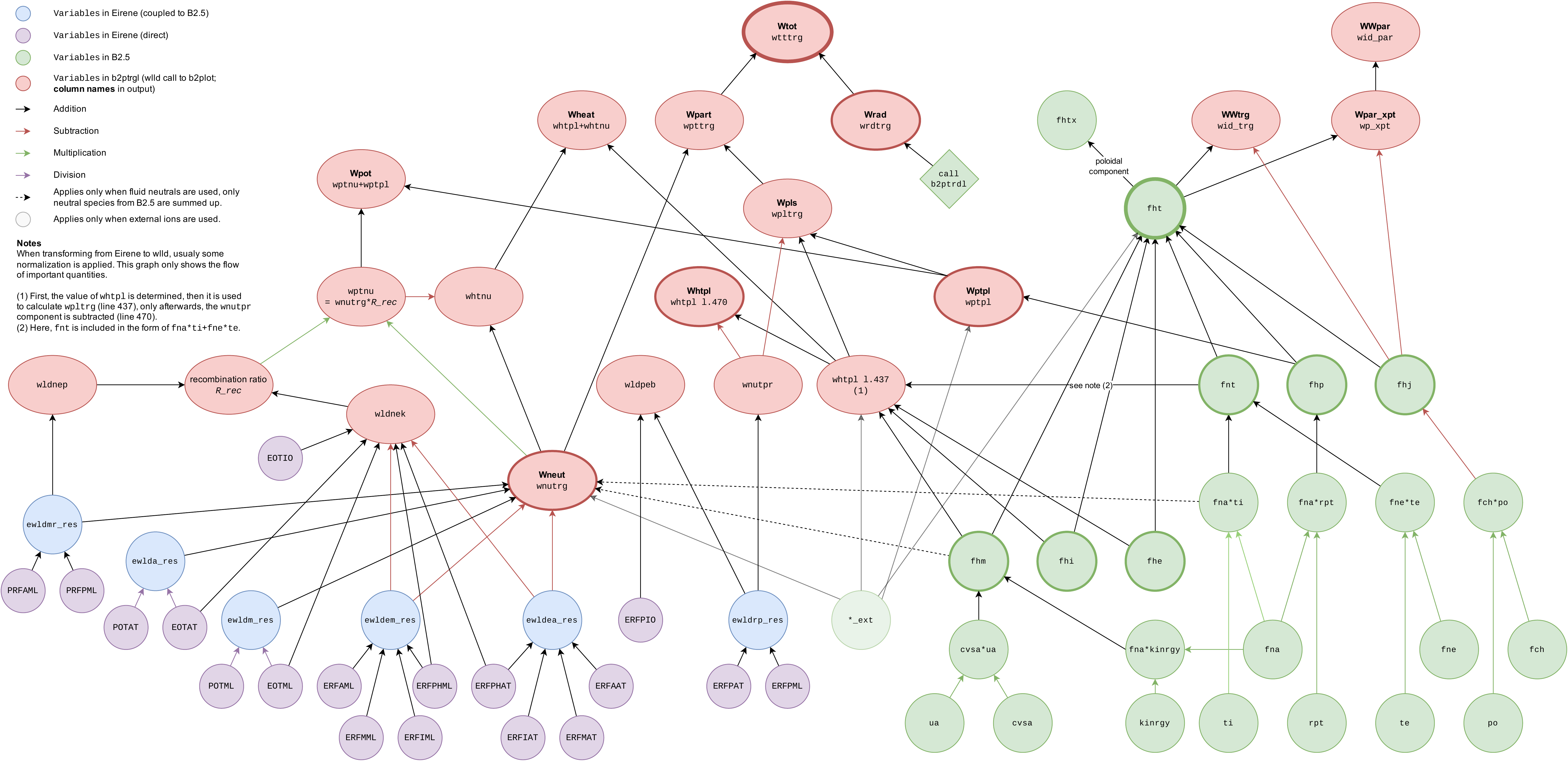

Cheat sheet
- Black arrow: addition (or summation through species)
- Red arrow: subtraction
- Green arrow: multiplication (leading to combination bubbles)
- Dashed arrow: only if fluid neutrals are being used
- Semitransparent arrow/bubble: external particles contribution (usually not present)
- Red bubble: columns in
ld_tg_*.dator underlying variables - Green bubble: variables from B2.5
- Blue bubble: variables in B2.5 loaded from Eirene
- Bold: column name
- Monospace: variable name
Note that 'recombination ratio' R_rec is not a variable, just a placeholder.
Divertor loads explained
First, it is necessary to distinguish between the situation when Eirene is on, or when the fluid neutrals are used. If the fluid neutrals are in use, everything is handled by B2.5 and the situation is more clear, as there is no coupling. What is interesting, is to discuss the case when Eirene handles neutrals (i.e. ft44 switch is on). Also, we expect that BoRiS is off, thus internal energy ballance is calculated within B2.5 run.
Short summary: Use wlld output for any postprocessing.
There are many ways to extract flux data from SOLPS, most common are raw data fromb2plasmf and b2statf files, or post-processing using b2plot. Both flux data are compared in the figure 2, left part being the output from echo 100 wlld | b2plot as discussed in the previous section (see the data description there + note that in this particular simulation, there may have been incorrect definition of shadowing structure, thus Wrad is not accounted for, but it is not important for further discussion). On right-hand side is the total poloidal flux fhtx at the target, expanded to its components. However, closer inspection - see the grey dashed lines - indicates that the values obtained do not match.
Following the data paths in the cheat sheet, it is now more clear, what happens. As plasma hits the target, following processes are included in the calculation of the total divertor heat flux Wtot (or wtttrg).

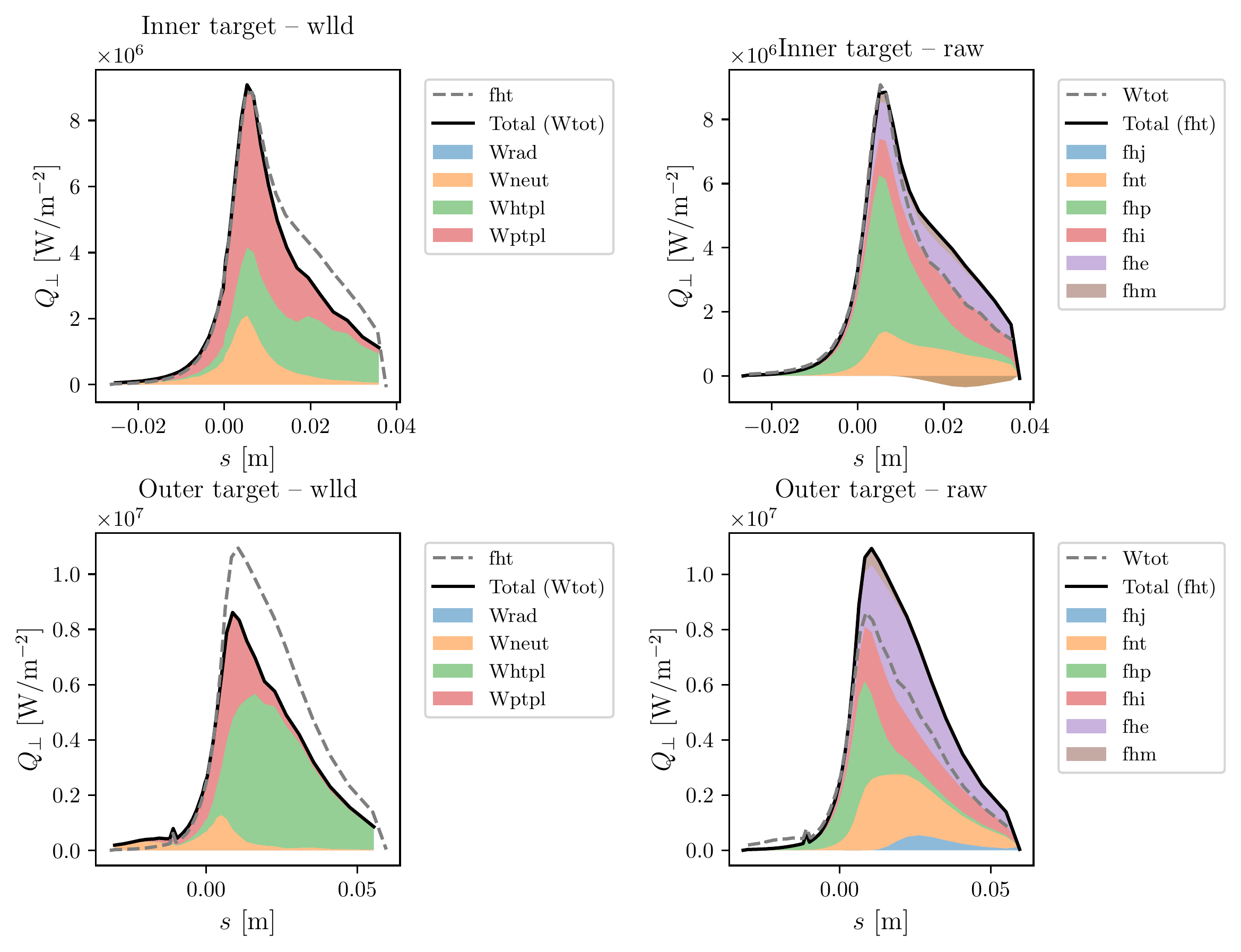

Energy coming to divertor is composed from (see figure 2):
- Radiation. Both from core and edge - core radiation is not a part of the plasma solution, thus total divertor heat flux should be higher by this amount. In the figure, the radiation is either negligible or wrongly assumed as 0.
- Potential energy (Wptpl or
fhp). This is the energy flux of ionized atoms or molecules that can be reduced with recombination. The quantity is taken one-to-one from B2.5 data. The potential energy flux is shown in the panel (b) of the figure 2. - Kinetic energy (Whtpl, no single internal equivalent). This is the energy that is carried by charged particles onto the surface. It consists of
fheandfhi- electron and ion (also molecular ions) thermal energy (the energy of the random motion).fhm- kinetic energy flux (the energy of the fluid flow).- negative contribution of
ewldrp_res- divertor is cooled by ions originating on the surface (meaning that this is one of particle/energy sources sources for the edge plasma).
- Neutral energy (Wneut, no single internal equivalent). There are processes that either heat or cool the divertor.
ewlda_res,ewldm_res- kinetic energy flux of neutral atoms and molecules.ewldmr_res- energy released into divertor through recombination.- negative contribution of
ewldea_resandewldem_res- these are energy fluxes carried from the surface by emitted atoms and molecules.
What is not contained in the fht (and is in Wtot)
- Radiation data - this is a bit unfortunate, since it is produced only in post-processing (in
wlld). According to Sven, some estimate could be produced usingstrahl. - Various contributions of neutral particles - incoming kinetic neutrals bring energy, some of them recombine (which releases energy) and some of them are being emitted back to plasma (which also releases energy from the divertor).
What is not contained in the Wtot (and is in fht)?
fhj- energy carried by the electric current - it is assumed that the divertor resistivity is ideal and the current flows freely to the wall and the energy is not dissipated in the divertor.
SOLPS domains and wall loads

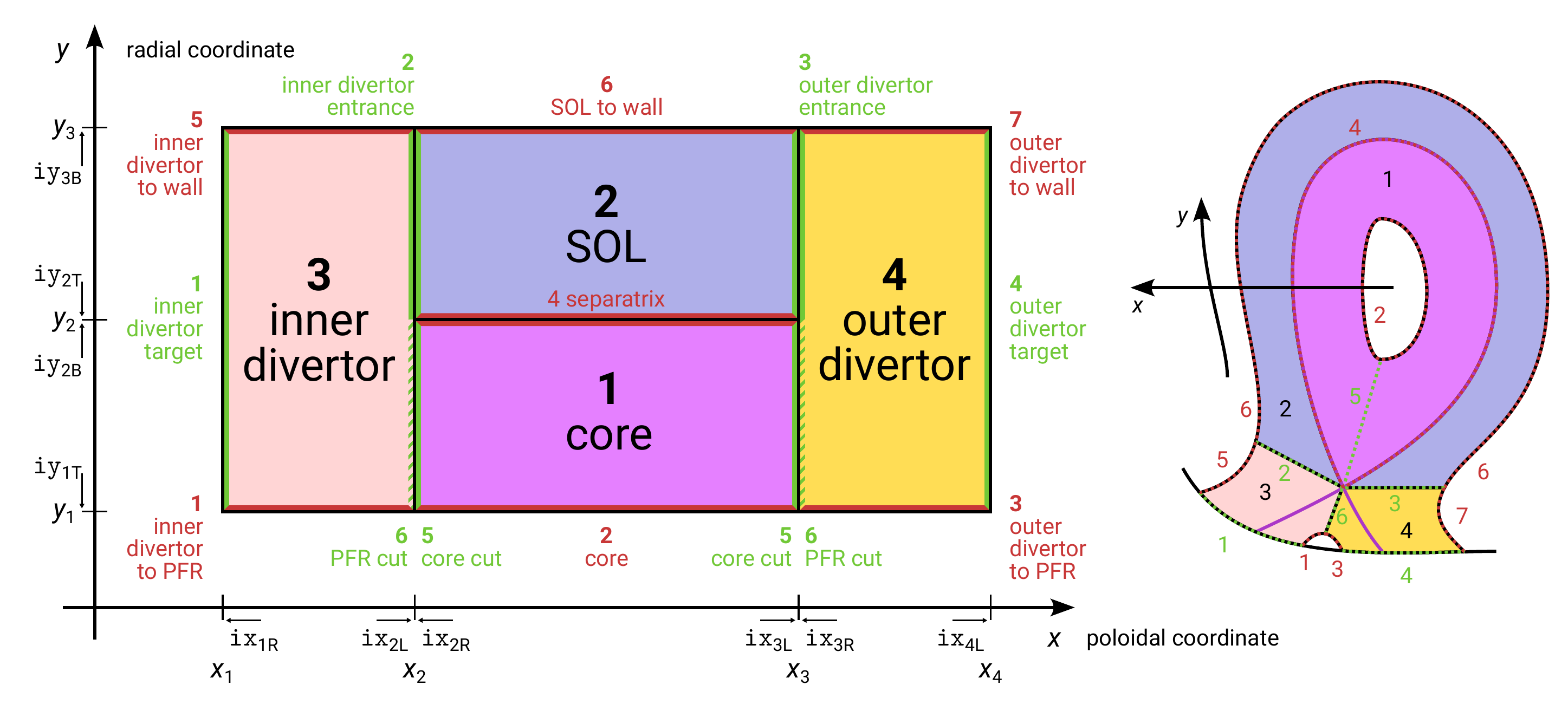

The figure 4 summarizes the commonly known physical and computational domains. To gain better insight into what happens inside the code, one has to familiarize oneself with some peculiarities of the computational domain. In this example, we discuss the case with two targets on the lower single-null plasma. Transition to the upper single-null is straightforward, everything is just turned upside down and inner target becomes the outer one. For more targets (like double null etc.), I will mostly include only remarks that I have found interesting.
Both physical and computational domain is 2D, each cell represents a single loop around the tokamak. Its coordinates are \(x\) - the poloidal coordinate around the magnetic axis (core is on right in clockwise direction); and \(y\) - radial coordinate, perpendicular to poloidal, originating on the magnetic axis. Transitioning from continuous values of \(x\) and \(y\), symbols for discrete cell indices ix and iy are usually used.
In the computational domain, there three kinds of regions.
- volume - black labels in the fig. 4
- \(x\)-directed - green labels in the fig. 4
- \(y\)-directed - red labels in the fig. 4
Note that \(x\)-directed regions 5 and 6 are in the physical domain facing each other forming a particle transfer boundary condition. Due to this fact, it is not possible to use simple addition when transforming cell indices to traverse the domain in for loops, thus helper arrays leftix, rightix, topix, bottomix and analogical equivalents for iy are used. An example of a computational domain is shown in the figure 5.
The whole structure is stored in the region variable, which is stored in the b2fgmtry file. It has dimensions [-1:nx,-1:ny,0:2] meaning that it has two ghost cells in each dimension. Last index defines the kind of region (from 0 to 2 included). The values of region indices are set in the file b2agfs.f.
To save boundary indices for important volume regions, following structures are used.
ltrgpos- list of target positions (\(x\)-directed)lseppos- list of separatrix positions (\(y\)-directed)lpfrpos- list of private flux region positions (\(x\)-directed)
These lists have dimensions corresponding to number of targets and they are defined in the file b2pwlprp.f. To calculate those, lists of topological cuts (the indices defining boundaries in \(x\) or \(y\) directions; shown as iy\(_{4}\),
ix\(_{2}\) and ix\(_{3}\) in the fig. 4) are used. They are either automatically calculated in b2run b2ag call, or can be forced using b2agfs_* parameters. I would not recommend that. There are four *cut variables:
leftcut- poloidal index of the left branch of the vertical cut (cell on the right of the cut), meaningix\(_{2\mathsf{R}}\) in the fig. 4.rightcut- poloidal index of the right branch of the vertical cut (cell on the right of the cut), meaningix\(_{3\mathsf{R}}\) in the fig. 4.bottomcut- poloidal index just below the horizontal cut (i.e. last cell in the SOL before separatrix, indexiy\(_{2\mathsf{T}}\)).topcut- poloidal index just below the horizontal cut (i.e. first cell in the core after separatrix, indexiy\(_{2\mathsf{B}}\)).
This is however valid only if there are two targets. If there are more, it gets complicated and *cut variables contain more than one value (there are four cuts instead of 2). And the regions are even more complicated, when it gets to disconnected double null (DDN) case. See the SOLPS manual from page 450 on.
In SOLPS convention (\(-1\) is the lowest index), then the target, separatrix and PFR positions are in the case of single null defined as:
ltrgpos = [-1, nx-1]
lseppos = [topcut-1, topcut-1]
lpfrpos = [leftcut-1, rightcut]
This might seem strange, but one has to think of the values as "last index before the intended region", then it makes sense. These variables are then usually used for orientation within regions, when SOLPS authors felt like it. On other places, like in the geometry definition in b2agfs.f, *cut variables are used instead.
